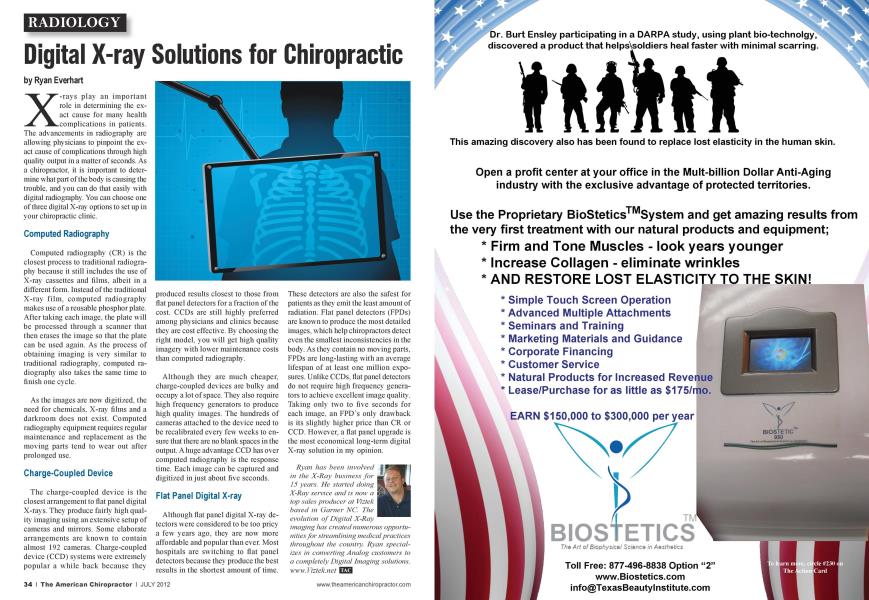

Digital X-ray Solutions for Chiropractic

July 1 2012 Ryan Everhart
Digital X-ray Solutions for Chiropractic
July 1 2012 Ryan Everhart

X-rays play an important role in determining the ex­act cause for many health complications in patients. The advancements in radiography are allowing physicians to pinpoint the ex­act cause of complications through high quality output in a matter of seconds. As a chiropractor, it is important to deter­mine what part of the body is causing the trouble, and you can do that easily with digital radiography. You can choose one of three digital X-ray options to set up in your chiropractic clinic. Computed Radiography Computed radiography (CR) is the closest process to traditional radiogra­phy because it still includes the use of X-ray cassettes and films, albeit in a different form. Instead of the traditional X-ray film, computed radiography makes use of a reusable phosphor plate. After taking each image, the plate will be processed through a scanner that then erases the image so that the plate can be used again. As the process of obtaining imaging is very similar to traditional radiography, computed ra­diography also takes the same time to finish one cycle. As the images are now digitized, the need for chemicals. X-ray films and a darkroom docs not exist. Computed radiography equipment requires regular maintenance and replacement as the moving parts tend to wear out after prolonged use. Charge-Coupled Device The charge-coupled device is the closest arrangement to fiat panel digital X-rays. They produce fairly high qual­ity imaging using an extensive setup of cameras and mirrors. Some elaborate arrangements arc known to contain almost 192 cameras. Charge-coupled device (CCD) systems were extremely popular a while back because they produced results closest to those from flat panel detectors for a fraction of the cost. CCDs are still highly preferred among physicians and clinics because they arc cost effective. By choosing the right model, you will get high quality imagery with lower maintenance costs than computed radiography. Although they are much cheaper, charge-coupled devices arc bulky and occupy a lot of space. They also require high frequency generators to produce high quality images. The hundreds of cameras attached to the device need to be recalibrated every few weeks to en­sure that there are no blank spaces in the output. A huge advantage CCD has over computed radiography is the response time. Each image can be captured and digitized in just about five seconds. Flat Panel Digital X-ray Although flat panel digital X-ray de­tectors were considered to be too pricy a few years ago. they are now more affordable and popular than ever. Most hospitals are switching to flat panel detectors because they produce the best results in the shortest amount of time. These detectors are also the safest for patients as they emit the least amount of radiation. Flat panel detectors (FPDs) arc known to produce the most detailed images, which help chiropractors detect even the smallest inconsistencies in the body. As they contain no moving parts, FPDs arc long-lasting with an average lifespan of at least one million expo­sures. Unlike CCDs. flat panel detectors do not require high frequency genera­tors to achieve excellent image quality. Taking only two to five seconds for each image, an FPD"s only drawback is its slightly higher price than CR or CCD. However, a flat panel upgrade is the most economical long-term digital X-ray solution in my opinion. Ryan has been involved in the X-Ray business for J5 years. He started doing X-Ray seivice and is now a top sales producer at Viztek based in Garner NC. The evolution of Digital X-Ray imaging has created numerous opportu­nities for streamlining medical practices throughout the country. Ryan special­izes in converting Analog customers to a completely Digital Imaging solutions, www. I lztek.net Ed
