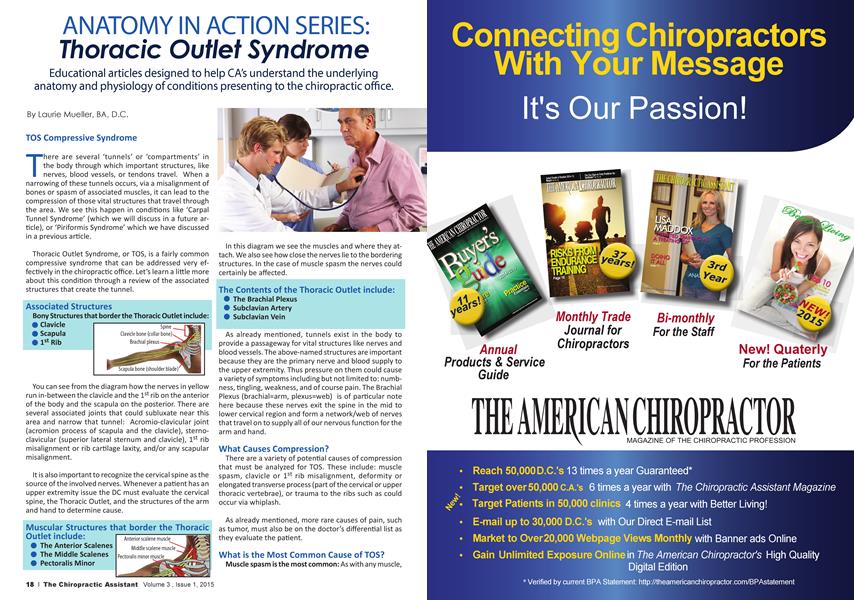

ANATOMY IN ACTION SERIES: Thoracic Outlet Syndrome
January 2 2015 Laurie Mueller

ANATOMY IN ACTION SERIES: Thoracic Outlet Syndrome

Educational articles designed to help CA's understand the underlying anatomy and physiology of conditions presenting to the chiropractic office.

Laurie Mueller

TOS Compressive Syndrome

There are several 'tunnels' or 'compartments' in the body through which important structures, like nerves, blood vessels, or tendons travel. When a narrowing of these tunnels occurs, via a misalignment of bones or spasm of associated muscles, it can lead to the compression of those vital structures that travel through the area. We see this happen in conditions like 'Carpal Tunnel Syndrome' (which we will discuss in a future article), or 'Piriformis Syndrome' which we have discussed in a previous article.

Thoracic Outlet Syndrome, or TOS, is a fairly common compressive syndrome that can be addressed very effectively in the chiropractic office. Let's learn a little more about this condition through a review of the associated structures that create the tunnel.

Associated Structures

Bony Structures that border the Thoracic Outlet include:

• Clavicle

• Scapula

• 1st Rib

You can see from the diagram how the nerves in yellow run in-between the clavicle and the 1st rib on the anterior of the body and the scapula on the posterior. There are several associated joints that could subluxate near this area and narrow that tunnel: Acromio-clavicular joint (acromion process of scapula and the clavicle), sternoclavicular (superior lateral sternum and clavicle), 1st rib misalignment or rib cartilage laxity, and/or any scapular misalignment.

It is also important to recognize the cervical spine as the source of the involved nerves. Whenever a patient has an upper extremity issue the DC must evaluate the cervical spine, the Thoracic Outlet, and the structures of the arm and hand to determine cause.

Muscular Structures that border the Thoracic Outlet include:

# The Anterior Scalenes

# The Middle Scalenes

# Pectoralis Minor

In this diagram we see the muscles and where they attach. We also see how close the nerves lie to the bordering structures. In the case of muscle spasm the nerves could certainly be affected.

The Contents of the Thoracic Outlet include:

# The Brachial Plexus

# Subclavian Artery

# Subclavian Vein

As already mentioned, tunnels exist in the body to provide a passageway for vital structures like nerves and blood vessels. The above-named structures are important because they are the primary nerve and blood supply to the upper extremity. Thus pressure on them could cause a variety of symptoms including but not limited to: numbness, tingling, weakness, and of course pain. The Brachial Plexus (brachial=arm, plexus=web) is of particular note here because these nerves exit the spine in the mid to lower cervical region and form a network/web of nerves that travel on to supply all of our nervous function for the arm and hand.

What Causes Compression?

There are a variety of potential causes of compression that must be analyzed for TOS. These include: muscle spasm, clavicle or 1st rib misalignment, deformity or elongated transverse process (part of the cervical or upper thoracic vertebrae), or trauma to the ribs such as could occur via whiplash.

As already mentioned, more rare causes of pain, such as tumor, must also be on the doctor's differential list as they evaluate the patient.

What is the Most Common Cause of TOS?

Muscle spasm is the most common: As with any muscle, spasm in the scalenes or pectoralis minor can be caused by one or more of a variety of mechanisms. These may include sprain/strain injuries such as from whiplash, sports, or personal injury/slip and fall. Spasms could also stem from a subluxation of the joints, or bone, to which the muscles attach.

The DC may also analyze the patient's nutrition. An imbalance of calcium/magnesium is often involved in muscular dysfunction. Particularly a magnesium deficiency.

Management of TOS

There are several conditions that can cause pain and/ or weakness in the arm. Before a diagnosis of TOS can be made, the DC must first rule out the possibility of a herniated disc or other underlying lesion that could be causing the symptoms via pressure to the brachial plexus or blood vessels. This will be accomplished through physical examination, orthopedic and neurological testing, and diagnostic imaging tools.

Of course the DC must also rule out more uncommon causes like a tumor which would indicate the need for referral to a surgeon or specialist.

Keep in mind that it is always great news for a parient to hearthatthey have TOS vs. a disc herniation ortumor!

When the DC creates a care plan for a patient with TOS they will address the issues of misaligned bones through

chiropractic adjustments, and they will work to alleviate the muscle spasm. Those doctors that work with nutrition may also recommend a calcium/magnesium supplement. Those minerals tend to be key nutritional deficiencies associated with muscular symptoms. Some DC's may also recommend an herbal supplement like St. John's Wort which can help promote muscle relaxation.

From the perspective of physiotherapy, the DC may recommend ultrasound or electric muscle stimulation on the overlying tissue.

Manual massage and stretch of the muscle, if affected, is very effective and can be accomplished by the doctor or by a massage therapist.
